Hot Tapping & Line Stopping
Modify or expand live pipelines without shutdowns. Field-Proven Hot Tapping & Line Stopping solutions that protect pressure integrity and production uptime.
1,450 PSI
Max Pressure
280°C
Max Temp
72"
Max Diameter
⚡ Rapid Response Team Available
Schedule Your Service
Expert consultation • Fast deployment • 24/7 support
API 2201 & DNP Standards Certified
Trusted By Industry Leaders
35+ years supporting global EPC contractors
Petrofac
Maire Tecnimont
Tecnicas Reunidas
Petrojet
Saipem
Technip
McDermott
CCC
Subsea 7
Samsung E&A / C&T
CPECC
Professional-Grade Tools & Equipment
Designed and operated in accordance with API 2201 and API 1104 Appendix B codes and adheres to DNP standards for material and design integrity.

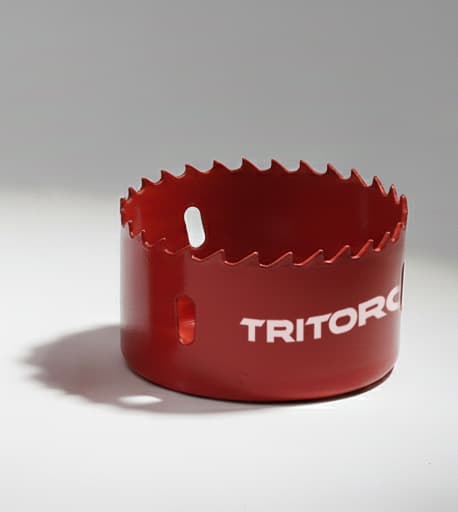

Cutters

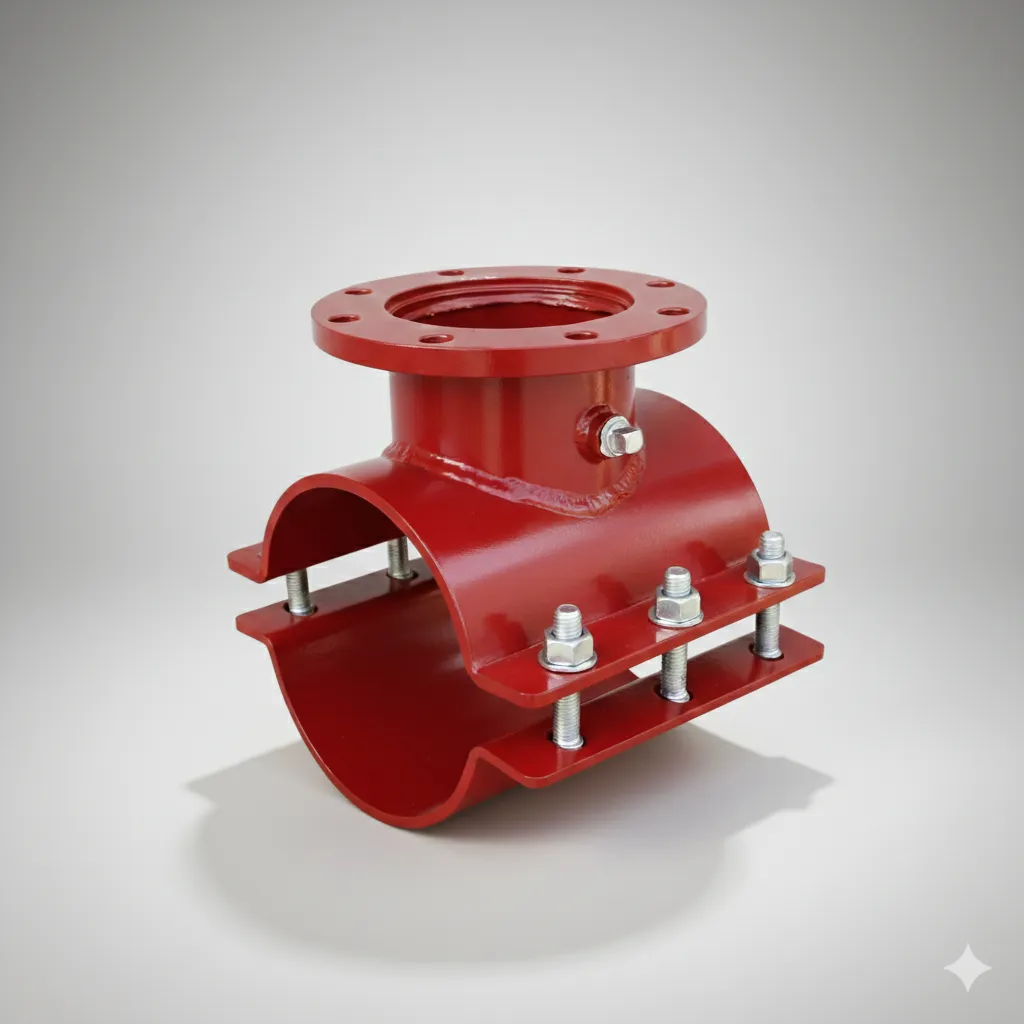

Split-Tees

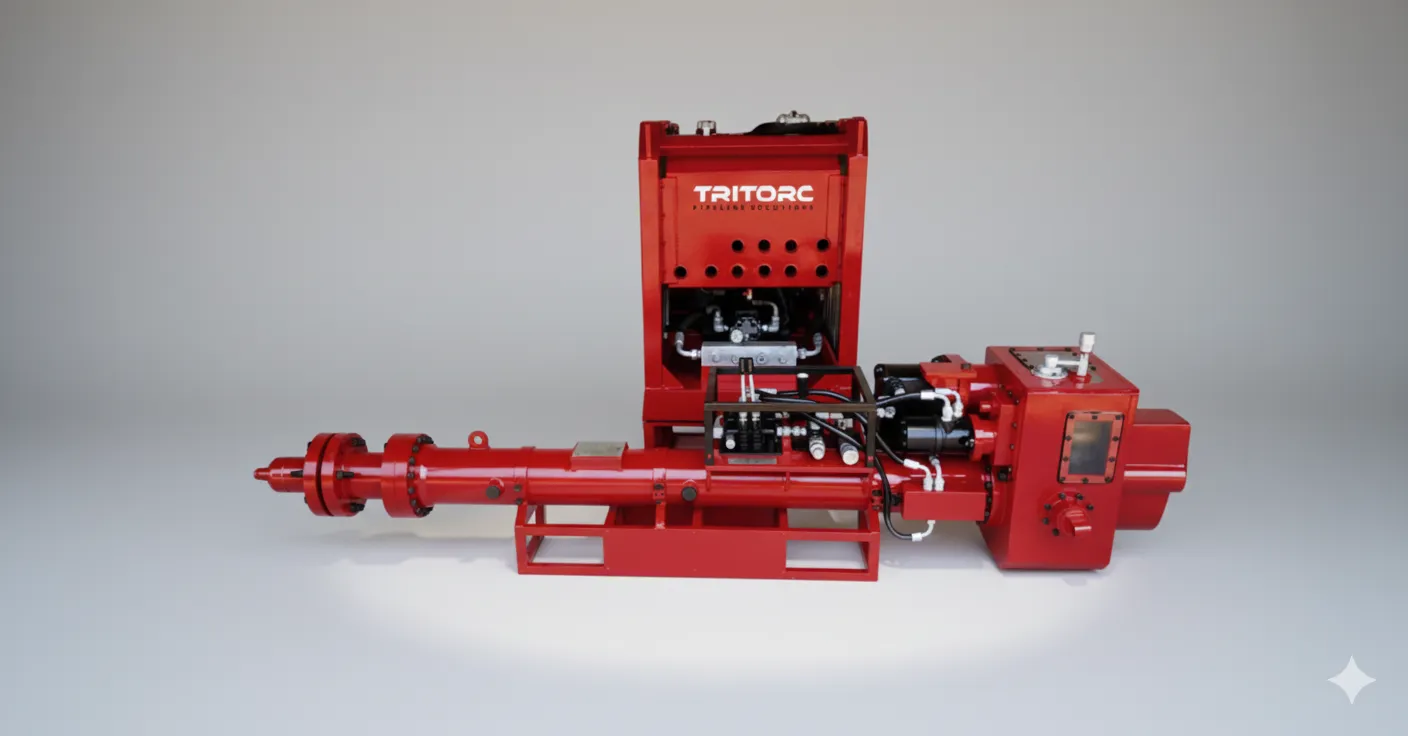

Hot-Tapping Machines

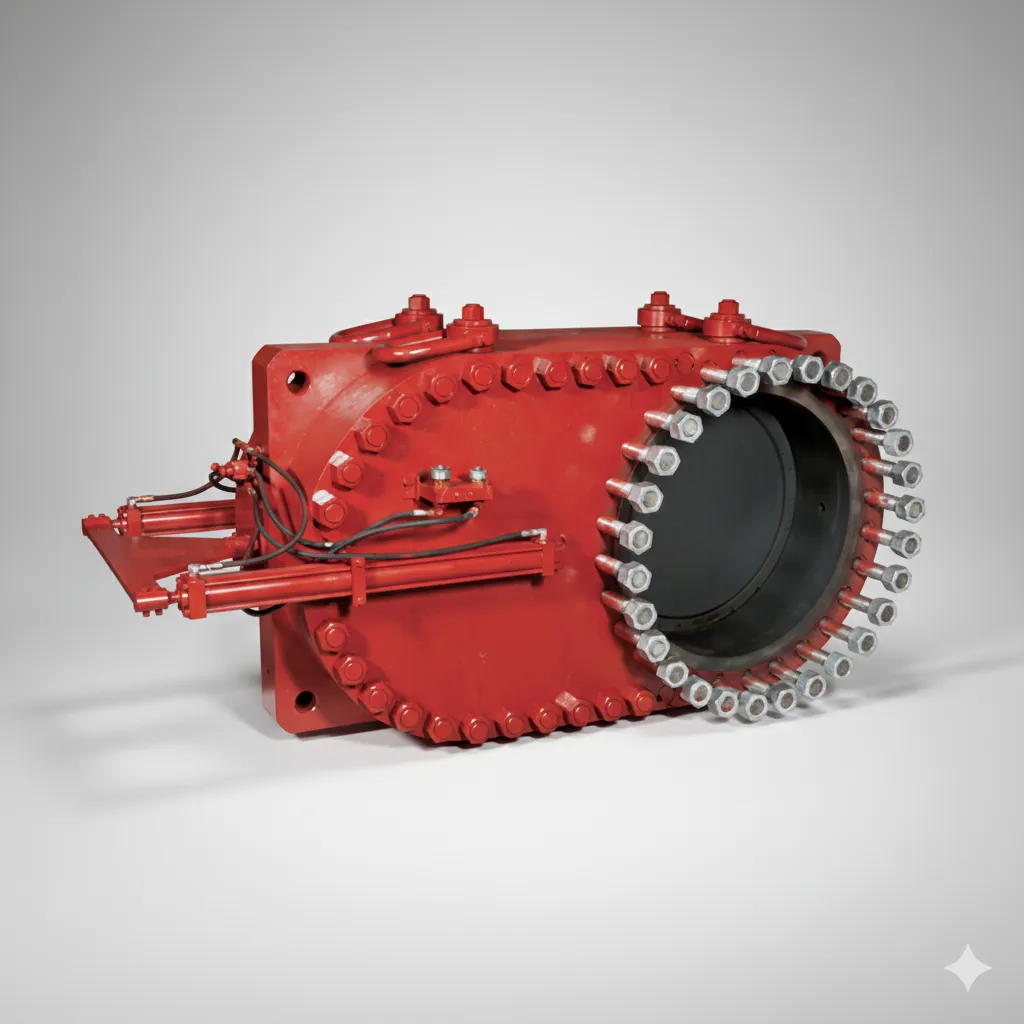

Sandwich Valves

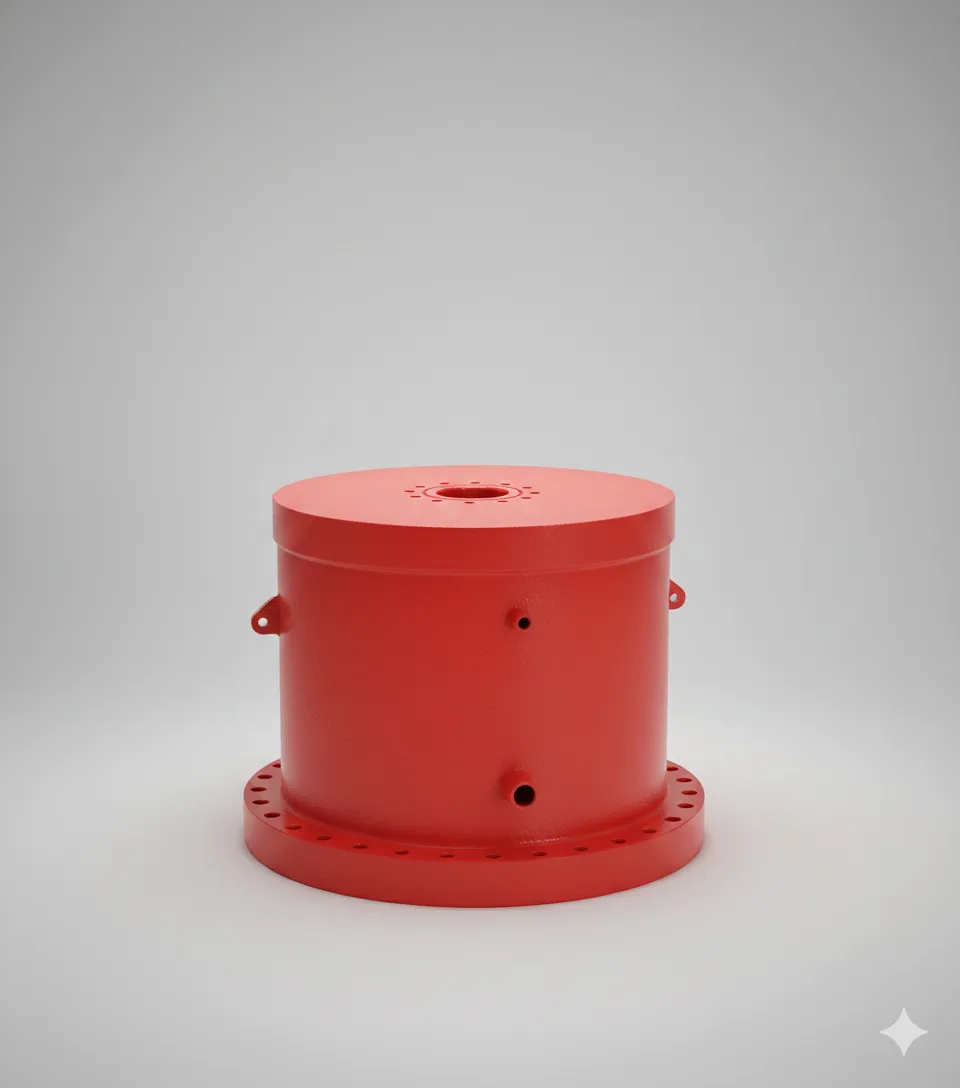

Adapters

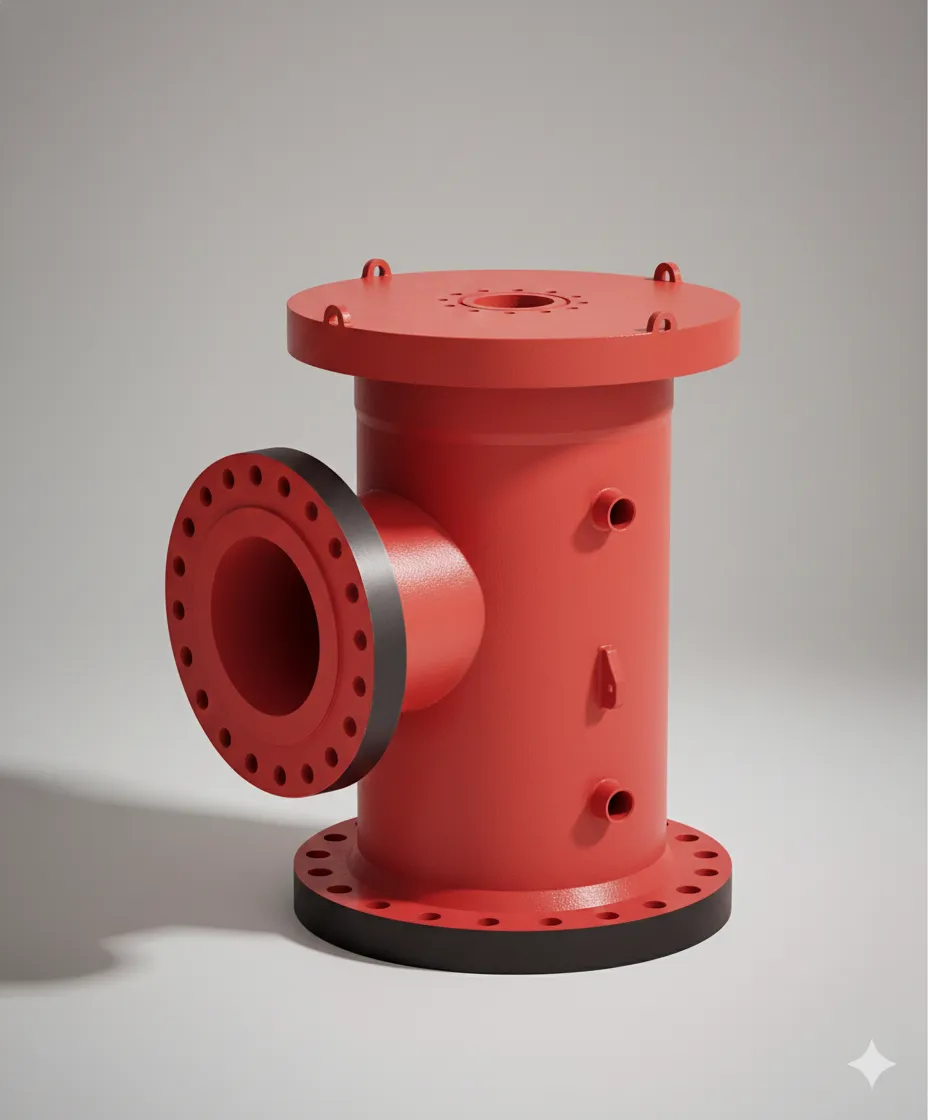

Adapters
Manual, Pneumatic & Hydraulic
Multiple drive types for any application
Size Range: ½" - 84"
Hot Tapping & Line Stop Fittings Size Range
All Steel Types
Carbon, Stainless & Alloy Steel compatible
Technical Specifications
Comprehensive capabilities for all hot tapping and line stopping operations
| Technical Specifications | Metric | Imperial |
|---|---|---|
| Minimum Pipe Diameter | 50.8 mm | 2" |
| Maximum Pipe Diameter | 1676.4mm | 72" |
| Materials Covered | Carbon Steel, Mild Steel, HTP, UPVC, GRP, FRP | |
| Drive Types of Hot Tapping Machines | Manual, Pneumatic and Hydraulic | |
| Hot Tapping & Line Stop Fittings Size Range | 12.7mm to 22352.2mm | 1/2" to 84" |
| Inflatable Gas Bag isolation up to | 2438.4mm | 96" |
| Line Stopping Machines ranges up to | 1676.4mm | 66" |
| Sandwich Valves | Manual up to: 304.8 mm Hydraulic up to: 1219.2 mm | Manual up to: 12" Hydraulic up to: 48" |
🔧
Max Operating Pressure
1,450 PSI / 100 bar
🌡️
Max Temperature
280°C / 536°F
✓
Compliance
API 2201 & DNP Standards
